Pinion Plate Wheel ISO5-6 Quality Small Size Gear For Reducer

Ask Lasest Price
Brand Name :	Dingsco
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	Negotiable
Delivery Time :	About 30 days

Add to Cart

Product Details
Company Profile

Pinion Plate Wheel ISO5-6 Quality Small Size Gear For Reducer

Characteristic

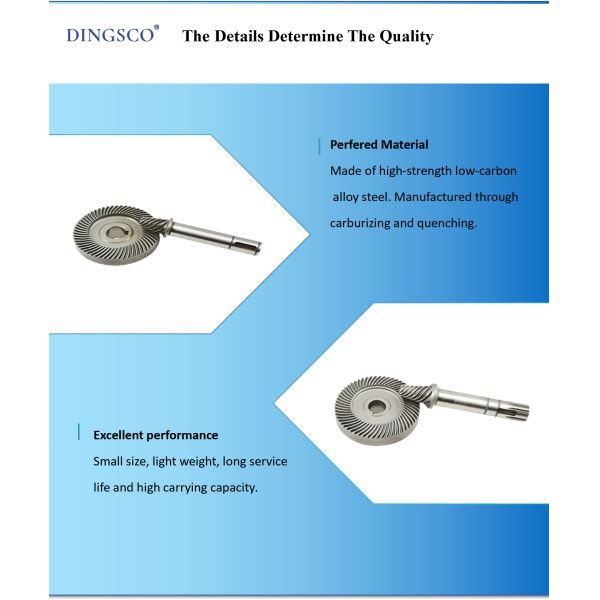

The gears are made of high-strength low-carbon alloy steel that has been carburized and quenched. The tooth surface hardness reaches HRC58-62. The gears all adopt CNC gear grinding technology, with high precision and good contact.

High transmission rate: single-stage is greater than 96.5%, double-stage is greater than 93%, and three-stage is greater than 90%.

Pinion Plate Wheel ISO5-6 Quality Small Size Gear For Reducer

Specification

Material	20CrMnTi,18CrNiMo7-6, 20MnCr5 etc
Shape	Bevel
Hardness	Hardened
Surface	Bright
Pressure Angle	20°, also can be customized
Accuracy Grade	ISO 6-7 Grade
Gear Wheel Diameter Range	20-1250mm
Heat Treatment	Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc.
Processing	Forging, hobbing, shaping, shaving, grinding etc
Application	Reducer

Mainly engaged in the design, processing and sales of high-precision, high-strength,

small-module spiral bevel gears, high-reduction ratio hypoid gears, and cylindrical gears.

Processing Features:

1. DH precision manufacturing: Spiral bevel gears require precision manufacturing processes due to their complex tooth geometry. Gear teeth are typically produced using specialized cutting tools,The accuracy of the cutting process directly affects the performance and durability of the gear. We have multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines, which can process high-reduction ratio hypoid gears and end-face arc tooth couplings.

2. Gear grinding: After the initial cutting process, spiral bevel gears often need to be ground. Grinding helps improve gear tooth surface finish, accuracy, and tooth-to-tooth contact. Ensure correct gear meshing to reduce noise and vibration during operation.

3. Heat treatment: Heat treatment is an essential step in processing spiral bevel gears. It involves heating the gear to a specific temperature and then quenching it to achieve the required hardness and strength. Heat treatment helps improve gear durability and wear resistance.

4. Inspection and Quality Control: Due to the critical nature of spiral bevel gears, strict inspection and quality control procedures are adopted during their manufacturing process. In order to ensure the dimensional accuracy and tooth profile consistency of the gears, we use various measurement methods, such as three-dimensional coordinate measuring machines (CMM), and we use the high-precision gear measurement center to complete the gear pitch accuracy detection, tooth profile error detection and reverse correction of tooth profile errors.

Bevel Gear Crown Pinion Bevel Gear Set for Automotive Tractor Rear Axle 1

Bevel Gear Crown Pinion Bevel Gear Set for Automotive Tractor Rear Axle 3
